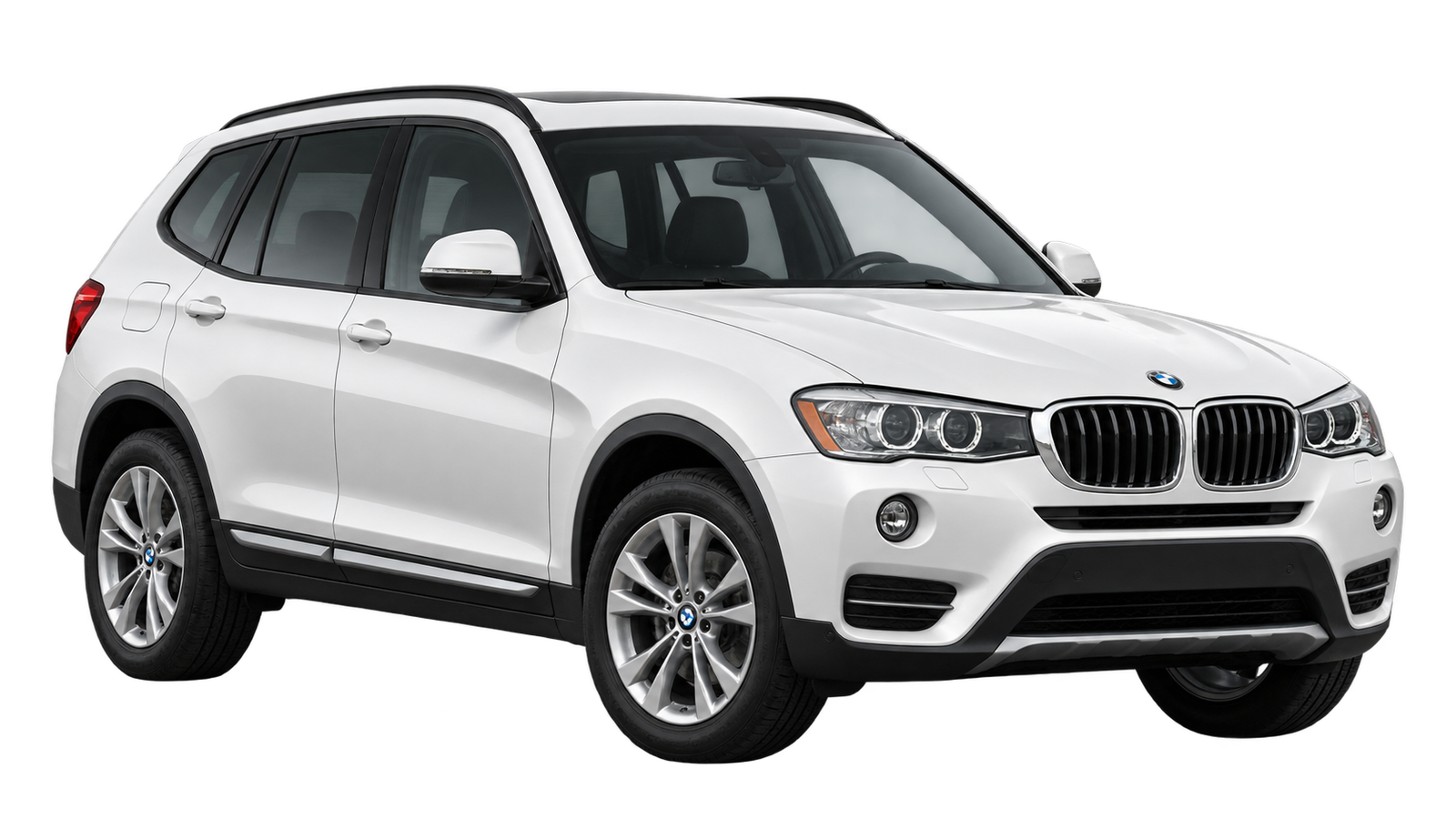

2004-2026 BMW X3 Problems: 19 Known Issues

On certain 2018-2019 X3 sDrive30i, xDrive30i and M40i vehicles (and 2019 X4 xDrive30i and M40i), the front passenger seat cover may have been mounted incorrectly: hog rings that fasten the seat cover to the seat frame can contact the seat-heating cable harness. Over time this can affect the occupant classification (CIS) mat, and in certain limited circumstances the system can classify the occupied passenger seat as empty. The passenger front airbag is then deactivated and will not deploy in a crash, and BMW reports that the airbag warning lamp does not illuminate in this condition, so there is no dashboard warning. NHTSA campaign 21V-521 covers only 138 vehicles; BMW's earlier campaign 17V-605 covered the occupant detection mat on the previous-generation 2006-2010 X3 and is a different defect.

Approximately 64,926 X3 SAVs built between August 2006 and August 2010 (model years 2007-2010, E83 generation) were fitted with a non-desiccated Takata PSDI-5 driver's front airbag inflator. The propellant in these inflators degrades with age and exposure to heat and humidity; when it degrades the inflator can over-pressurise and rupture during deployment, spraying metal fragments into the cabin. NHTSA has issued Do Not Drive warnings for some older BMW Takata populations. BMW worked through the population in NHTSA's priority groups - older cars, humid regions and driver-side inflators first - so some owners waited years for parts, and cars that changed hands several times may still be unrepaired.

Recall 25V106 covers 40,736 US-market 2022–2024 X3 sDrive30i/xDrive30i vehicles built August 11, 2021–August 27, 2024. The rear-door locking modules may allow one interior-handle action to unlock and unlatch instead of the required separate actions, increasing risk to rear-seat occupants. BMW discovered the issue during internal testing and reported no related claims or injuries as of the February 2025 filing.

If one of the two channels in the steering torque sensor malfunctions while the vehicle is stationary (at startup, or in drive but stopped), the steering system software may not detect it, and the steering wheel may move unexpectedly. BMW reports field cases only at a standstill; unexpected steering wheel movement may increase the risk of a crash or injury. It affects certain 2025–2026 BMW X3 30 xDrive and X3 M50 xDrive (G45) produced August 14, 2024 to October 20, 2025, covered by NHTSA recall 25V-857 (36,922 vehicles). Only a VIN check confirms whether a vehicle is included and whether the update has been done.

On a small number of X3s, the connection between the steering spindle and the steering column may not have been made to specification. BMW says this can cause noise and play in the steering, and in rare cases turning the steering wheel may not provide the force needed to turn the wheels, which could increase the risk of a crash. The recall covers 13 BMW X3 sDrive30i, 30 xDrive and M50 xDrive vehicles from model years 2024–2026, built between August 7, 2023 and February 7, 2026, covered by NHTSA recall 26V-524. BMW estimates about 5% of them have the defect. Only a VIN check confirms whether a vehicle is included.

This is a mechanical fastener defect, not the familiar VANOS solenoid clogging. On affected X3 xDrive28i and xDrive30i cars with the N52 six, the four assembly screws in each VANOS adjustment unit can gradually loosen and eventually break. If that happens, a reduced engine power safe mode may activate, the engine may not restart after being switched off, and in rare cases it can stall while driving. NHTSA campaign 23V-707 covers certain model-year 2010-2013 BMW 1, 3 and 5 Series, X1, X3, X5 and Z4 models with inline-six engines; check the VIN. If bolt heads fall into the engine, the oil-pump and timing-chain drives can be damaged, which is why BMW tells owners showing symptoms not to continue driving and to arrange transport to a BMW center.

A whining noise from the lower engine near the oil pump that rises in pitch with engine speed can come from wear on the oil-pump drive chain and the timing-chain sprockets. BMW extended the warranty on these chains for eligible vehicles; the bulletin does not say every X3 is affected. It affects F25 X3 xDrive28i models with the N20 four-cylinder produced March 2012 to February 2015, and sDrive28i with the N20 produced March 2014 to February 2015, as listed in BMW SIB 11 03 17. Production date alone does not decide eligibility; BMW checks by VIN. The xDrive35i (N55) and xDrive28d are not covered.

The N52 six-cylinder uses two VANOS solenoids to adjust cam timing with engine oil pressure, one for the intake cam and one for the exhaust cam. They are on the front of the engine. Owners report that the solenoids can stick or get dirty over time. When that happens, the engine computer sees the cam position drift from its target and logs a cam-timing fault, such as P0012 (intake cam over-retarded). Owners report rough or hunting idle, loss of power, odd fuel economy and an intermittent check engine light. Similar faults have also been traced to a faulty oil filter housing cap, wiring, or other sensors, so test before buying parts. This covers X3 models with the N52: the E83 3.0si and xDrive30i (2007-2010) and the F25 xDrive28i (2011-2012). It does not cover the N20 or N55 turbo engines. A separate problem affects 2010-2011 X3 xDrive28i and xDrive30i models built Sep 3, 2009 to Sep 16, 2011. On those cars, the aluminum bolts that hold the VANOS housing can loosen or break, which sets similar cam-timing faults. This can also trigger limp-home mode and, in rare cases, a stall or no-start. It is covered by safety recall 23V-707.

Engine oil can leak from the cylinder head (valve) cover gasket because its retaining bolts have worked loose, leaving oil under the vehicle or an oil smell. It affects F25 X3 sDrive28i and xDrive28i models with the N20 four-cylinder, listed in BMW SI B11 03 15 (March 2015). The xDrive35i (N55) and xDrive28d are not covered by this bulletin.

Owners of N55 six-cylinder X3s describe oil seeping from the oil filter housing gasket, getting worse over time from damp to seeping to leaking, and leaving oil on the drive belt and hoses below. The owner reports linked here, including one from a 2011 X3, cover the 2011–2017 F25 X3 xDrive35i with the N55 turbocharged six-cylinder. The reports linked here do not cover the four-cylinder sDrive28i/xDrive28i (N20) or the xDrive28d diesel.

On X3 models with the inline six-cylinder engines, the rubber valve cover gasket and the smaller seals around the cover harden with age and stop sealing. Owners who have done the job describe the old gaskets as very hard and brittle after years of heat cycles. One owner found this at about 80,000 miles on a 2004 X3 2.5i, and another found it on a 2007 X3 3.0si at about 133,000 miles. Oil seeps out and drips onto the exhaust manifold below, and owners report a burning smell and smoke from under the hood. Owners also report leaks around the spark plug wells, and at least one owner traced the leak to the spark plug well seals rather than the outer gasket. A plug sitting in oil can misfire. On the N52, the Valvetronic motor seal and the cam sensor gaskets on the cover can harden and leak as well. Owners report leaks even on low-mileage cars, and there may be more than one leak point. The issue covers the M54 engine (E83 2.5i and 3.0i, 2004-2006) and the N52 engine (E83 3.0si and xDrive30i, 2007-2010, and F25 xDrive28i, 2011-2012). It does not cover the four-cylinder N20, the N55 or later engines.

On the diesel X3 xDrive28d the high-pressure fuel pump may fail, and pump failure can cause an engine stall while driving, increasing the risk of a crash. NHTSA campaign 21V-586 covers roughly 11,216 vehicles: certain 2014-2018 328d and 328d xDrive, 2014-2016 535d and 535d xDrive, 2015 740Ld xDrive, 2015-2017 X3 xDrive28d and 2014-2018 X5 xDrive35d.

On the diesel X3 xDrive28d (2015-2017 in the U.S.) the exhaust gas recirculation cooler can leak coolant internally. If the fluid combines with diesel soot particles it can damage the plastic intake manifold and increase the risk of a fire. NHTSA campaign 21V-907 covers the 2015-2017 X3 xDrive28d, and most of these vehicles were also subject to the earlier 18V-755 recall. Warning signs BMW lists are an exhaust odour, an unusual noise from the engine compartment, and in rare cases visible smoke.

Recall 23V821 includes certain 2023 X3 xDrive30i and X3 M vehicles within a 552-vehicle multi-model campaign. A defective weld seam in the transmission-control-unit cover can allow transmission oil inside the electronics. This can cause transmission-gear seizure and sudden loss of propulsion, increasing crash risk. The stated leak is internal to the control unit; it does not establish an external puddle as a diagnostic symptom.

BMW recall 24V608 addresses the electric coolant-pump connector, not simply routine pump wear. Liquid from the crankcase-ventilation system can drip onto the connection and cause a short circuit, with a thermal event possible in rare cases. The campaign includes certain 2013–2017 X3 sDrive28i/xDrive28i vehicles. The recall also covers other BMW models with N20 and N26 engines; a VIN check confirms whether a given X3 is included.

Owners describe the 4x4, ABS and brake warning lights coming on together and trace it to the xDrive transfer case actuator motor. Owners report the replacement actuator needed coding or calibration with BMW software, and some found a wheel-speed sensor was the real cause of similar warnings. The owner reports linked here, including one from a 2011 X3, cover the 2011–2017 F25 X3 with xDrive all-wheel drive. Rear-wheel-drive sDrive28i models have no transfer case.

BMW cargo-rail recalls concern attachment damage and possible rail separation in an extreme rear crash, increasing injury risk. 24V534 covers certain 2018–2023 X3 variants. Follow-up 24V764 applies to a selected group already repaired under 24V534 whose replacement screw connection may still be insecure. If your X3 was already repaired under 24V534, ask BMW whether it also needs 24V764. The recall filings do not list any warning signs.

BMW bulletin B31 02 18 identifies a rubber-mount tolerance condition on a limited production group of G01 X3 xDrive30i and M40i vehicles, with a rattle near the steering gear on uneven roads. It does not establish hydraulic-bushing collapse across all X3 generations. A brake-tap thud, wheel wobble or visible residue alone does not confirm this bulletin's condition.

Two software campaigns affect selected X3 vehicles. Recall 20V598 includes certain 2020–2021 X3s whose rearview image may be partly obscured. Recall 21V096 includes certain 2019–2021 X3 and X3 M vehicles: with option 6U3, rearview and surround/top-view images may occupy the wrong display positions; without that option, the screen may be blank. These campaign-specific software errors can reduce rearward visibility and increase crash risk. The combined model-year and trim list does not mean every configuration is covered by both campaigns.
